PNY GeForce RTX™ 3080 LHR 12GB XLR8 Gaming REVEL EPIC-X RGB™ Triple Fan
Overview
The GeForce RTX™ 3080 delivers the ultra performance that gamers crave, powered by Ampere—NVIDIA’s 2nd gen RTX architecture. It’s built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast G6X memory for an amazing gaming experience.
The all-new NVIDIA Ampere architecture features new 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput. The NVIDIA Ampere streaming multiprocessors are the building blocks for the world’s fastest, most efficient GPU for gamers and creators.
GeForce RTX™ 30 Series GPUs are powered by NVIDIA’s 2nd gen RTX architecture, delivering the ultimate performance, ray-traced graphics, and AI acceleration for gamers and creators.
KEY FEATURES
2nd Gen Ray Tracing Cores
3rd Gen Tensor Cores
PCI Express® Gen 4
Microsoft DirectX® 12 Ultimate
GDDR6 Graphics Memory
NVIDIA DLSS
NVIDIA® GeForce Experience™
NVIDIA G-SYNC®
NVIDIA GPU Boost™
Game Ready Drivers
Vulkan RT API, OpenGL 4.6
HDCP 2.3
VR Ready
Supports 4k 120Hz HDR, 8K 60Hz HDR and Variable Refresh Rate as specified in HDMI 2.1
LHR 52 MH/s ETH hash rate (est.)

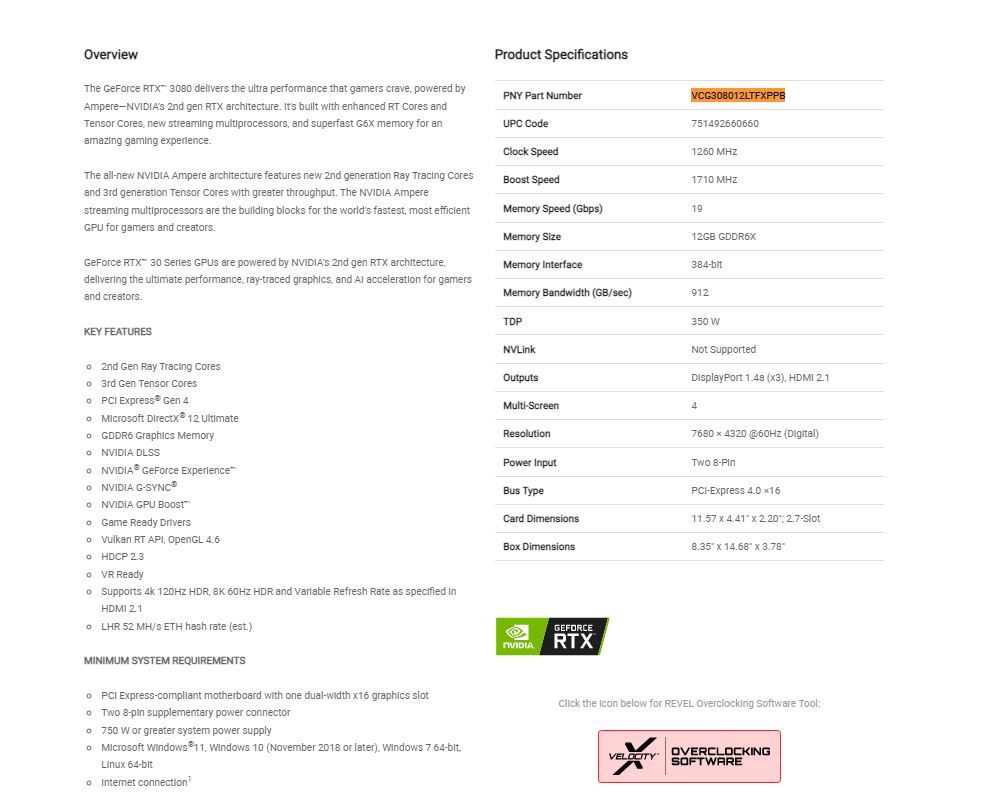

Product Specifications
Clock Speed 1260 MHz
Boost Speed 1710 MHz
Memory Speed (Gbps) 19
Memory Size 12GB GDDR6X
Memory Interface 384-bit
Memory Bandwidth (GB/sec) 912
TDP 350 W
NVLink Not Supported
Outputs DisplayPort 1.4a (x3), HDMI 2.1
Multi-Screen 4
Resolution 7680 × 4320 @60Hz (Digital)
Power Input Two 8-Pin
Bus Type PCI-Express 4.0 ×16
Card Dimensions 11.57 x 4.41' x 2.20'; 2.7-Slot
Box Dimensions 8.35' x 14.68' x 3.78'
